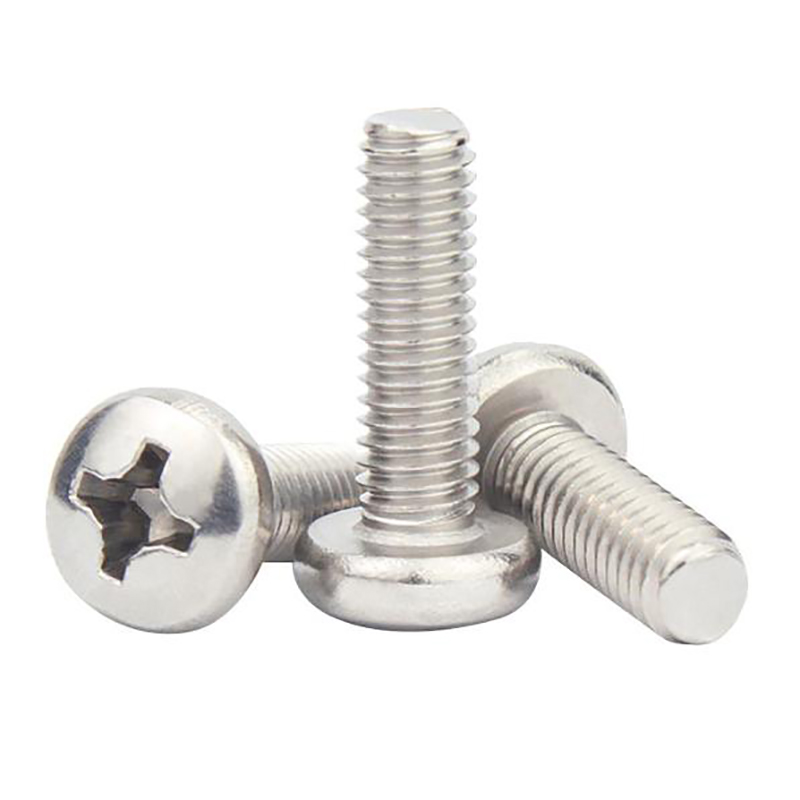

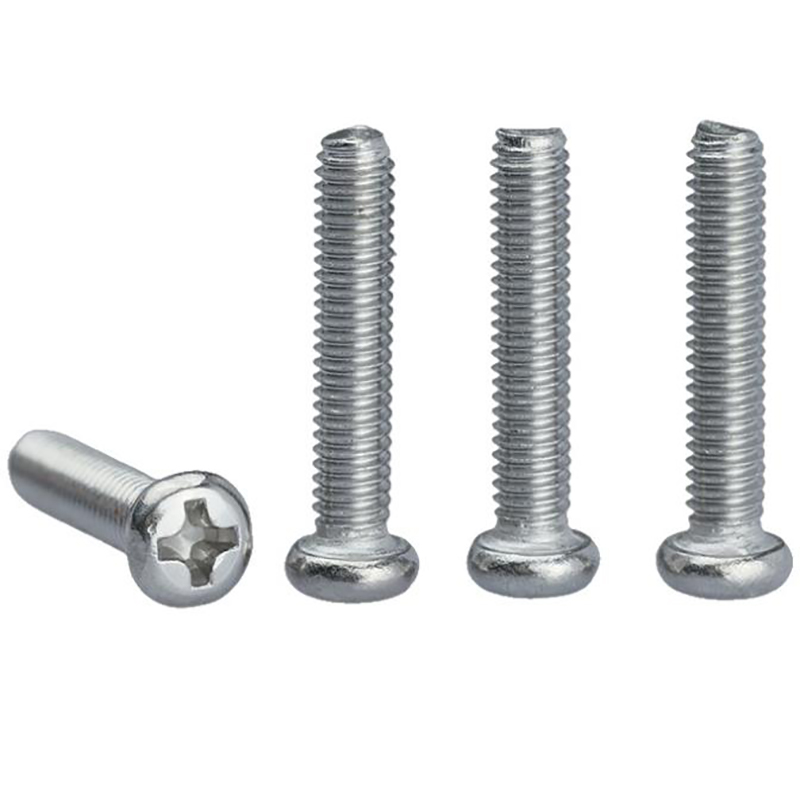

Cross pan head screw DIN7985
|
Material |
Stainless steel / Duplex steel / Hastelloy Steel / Inconel&Incoloy Alloy / Monel Alloy / Nickel Alloy / Titanium |
|
Size |
M2.5-M100 |
|
Application |
Machinery,Chemical Industry,Building,Car Industry,Medical,etc. |
|
Package |
Carton+Wooden |
|
Sample |
Free |
|
Finish |
Polishing |
|
Customed |
As the drawing |
|
Delivery Time |
5-25 days |
Cross head pan head screws are a common type of fastener.
Its characteristics include: the head is disc-shaped, relatively flat, and aesthetically pleasing. The design of the crosshead makes it easy to install and remove using a Phillips screwdriver, and the operation is relatively simple and fast.
This type of screw is widely used in many fields such as mechanical manufacturing, electronic equipment, furniture assembly, etc., and can play a role in connection, fixation, etc.

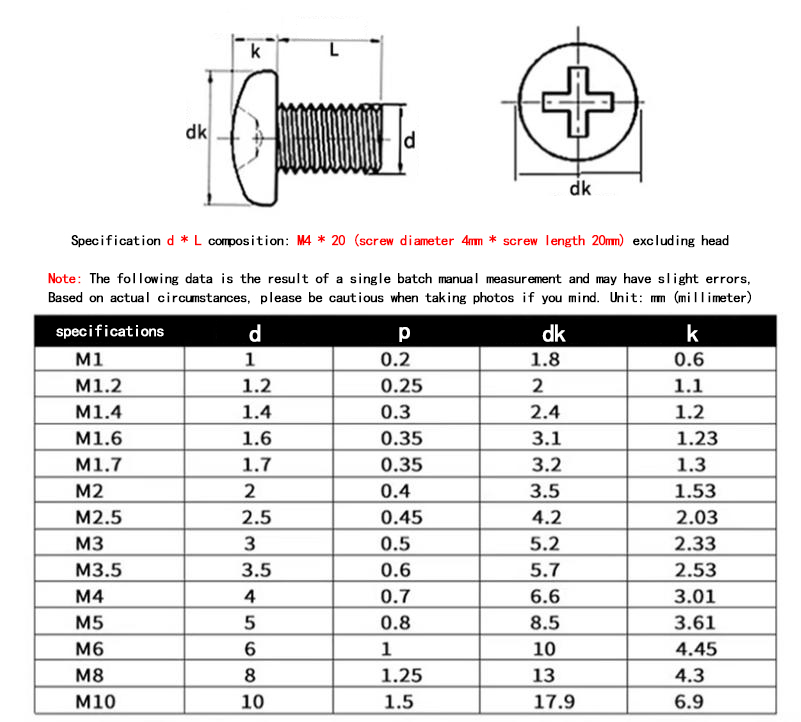

The head specifications of cross head pan head screws usually include the following common sizes:
1. Diameter: Common ones include 3mm, 4mm, 5mm, 6mm, etc.
2. Head thickness: such as 1.5mm, 2mm, 2.5mm, etc.
To select the appropriate specifications for cross head pan head screws based on the usage scenario, the following aspects need to be considered:
1. Thickness of connecting material: If the connecting material is thin, shorter and thinner screws should be selected to avoid penetrating the material. On the contrary, thicker materials require longer and thicker screws to provide sufficient fastening force.
2. Load bearing capacity: If large tensile, compressive, or shear forces need to be borne, screws with larger diameters and higher material strength should be selected.
3. Installation space limitation: In the case of limited space, it is necessary to consider the size of the screw head and the length of the screw to ensure smooth installation without affecting surrounding components.
4. Material: Different materials need to be matched with screws of corresponding specifications. For example, softer materials may require thicker screws to ensure the stability of the connection.
5. Aesthetic requirements: In some scenarios that require appearance, it may be necessary to choose screws with smaller head size and regular shape.
6. Vibration and impact environment: If in an environment with frequent vibration or potential impact, screws with anti loosening design or higher strength should be selected, and the screw specifications should ensure sufficient fastening force.
7. Anti corrosion requirements: In humid and corrosive environments, it is necessary to choose screw materials with anti-corrosion properties, and select appropriate specifications and surface treatments according to the severity of the environment.
The common materials for cross head pan head screws are as follows:
1. Carbon steel: It has high strength and hardness, relatively low price, and wide application.
2. Stainless steel: It has good corrosion resistance and is suitable for humid, corrosive environments or places with high hygiene requirements.
3. Aluminum alloy: lightweight, moderate strength, commonly used in situations where weight is required.
4. Brass: It has good electrical and thermal conductivity and is commonly used in the electrical and electronic fields.
5. Titanium alloy: high strength, light weight, strong corrosion resistance, but high cost, commonly used in high-end fields such as aerospace.
Different materials have different performance characteristics, and the selection should be based on specific usage needs and environments.
