High strength Huasi diamond tail wire
Specification
| Product name | Cross drilling screw with pad |
| texture of material | C1022A |
| standard | GB |
| appearance | Natural color |
| Delivery time | 3-15 days |
| packing | Plastic bag / carton |
Huasi drill tail screw "is usually a type of drill tail screw. Drill tail screw is a new invention in recent years. Its tail is in the shape of a drill tail or pointed tail, and does not require auxiliary processing. It can be directly drilled, tapped, and locked on the setting material and base material, greatly saving construction time.
The characteristics of Huasi diamond tail wire include:
1. Tail shape: The tail is generally in the shape of a drill tail or pointed tail, which eliminates the need for auxiliary processing. It can be directly drilled, tapped, and locked on the material and foundation, greatly saving construction time.
2. Performance: Compared with ordinary screws, it has higher toughness and holding force, and will not loosen for a long time after combination.
Its main use is for fixing color steel tiles in steel structures, and it can also be used for fixing thin plates in simple buildings, but it cannot be used for metal to metal bonding fixation.

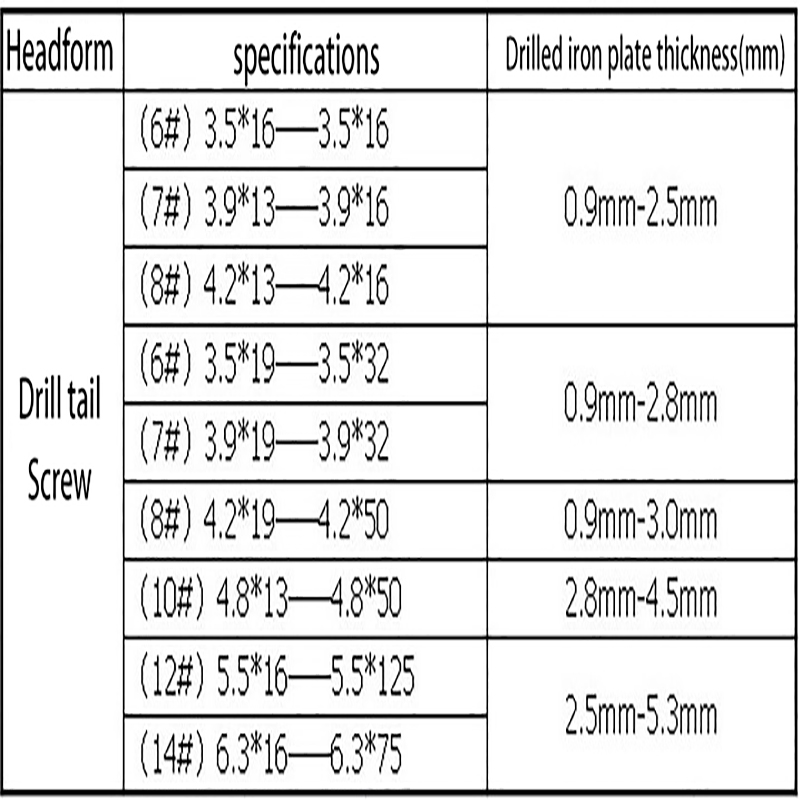

There are various specifications and sizes of Huasi drill tail wire, with common sizes including φ 4.2, φ 4.8, φ 5.5, and φ 6.3. The length is selected according to actual needs. According to the different materials, they are mainly divided into carbon steel, stainless steel (such as 410 material), stainless steel (such as 304 material, 410 material), and composite drill tail screws (such as drill bits produced from carbon steel, threads and heads produced by the process of combining 304 stainless steel).
Here are some common material characteristics:
1. Carbon steel drill tail screw (such as 1022a): Standard heat-treated steel can be used as a material for the production of drill tail screws. After heat treatment, the surface hardness is high, and the core hardness is moderate. Ordinary surface treatment is prone to rusting, and it has the characteristics of high hardness and low cost.
2. Stainless steel drill tail screw (410): can be heat treated, with better rust prevention ability than carbon steel, but worse than stainless steel.
3. Stainless steel drill tail screw (304): It cannot be heat-treated, has strong rust prevention ability, but has low hardness and high cost, and can only be used for drilling aluminum plates, wooden boards, rubber plates and other materials.
When choosing Huasi drill tail wire, it is necessary to consider factors such as usage scenarios, properties of fixing materials, size specifications of screws, and rust prevention requirements to ensure the selection of suitable products. At the same time, attention should also be paid to the installation method, such as using a suitable electric drill and adjusting it to the appropriate speed. For details, please refer to the installation instructions of the product.
