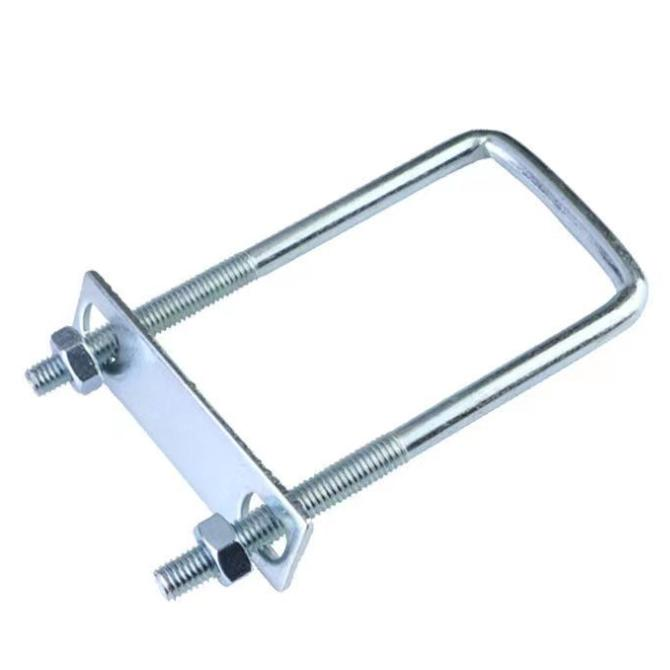

High Strength Wholesale Galvanized U Bolt Auto Part Trailer U-bolt Nut Pipe Clamp U Bolt
| Product name | U-bolt |
| Brand | CL |
| Product model | M10-200 |
| Surface treatment | Black、galvanized、Hot dip galvanized |
| Material | Carbon steel |
| Standard | DIN、GB |
| About the material | Our company can customize other different materials different specifications can be customized |

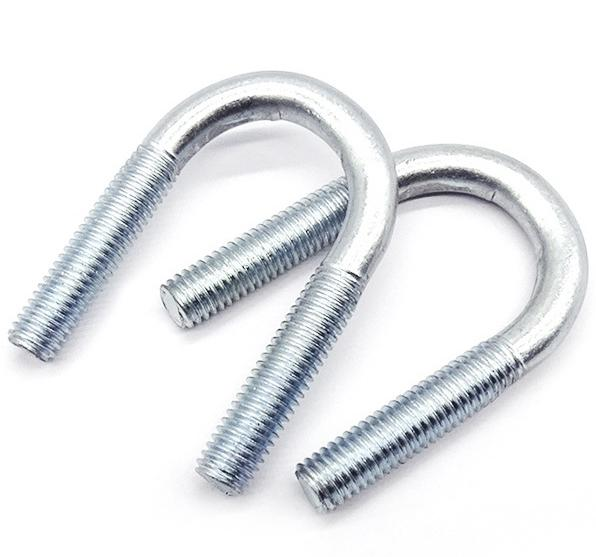

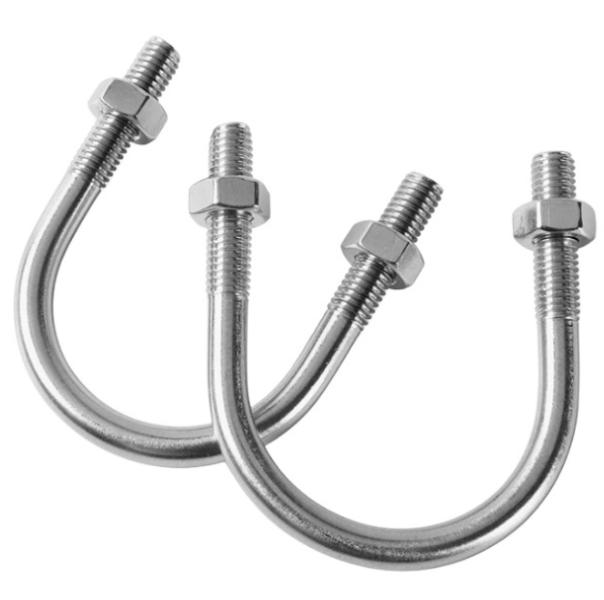

U-shaped bolt, also known as U-shaped bolt, is named after its U-shaped shape. The horseback bolt is a non-standard component with a U-shaped shape, also known as a U-shaped bolt. It has threads on both ends that can be combined with nuts and is mainly used to fix tubular objects such as water pipes or sheet objects such as car springs. Due to the way it fixes objects like a person riding a horse, it is called a horseback bolt.
U-shaped vehicles are generally used on trucks to stabilize the vehicle's chassis and chassis. For example, steel plate springs are connected with U-bolts.
U-bolts have a wide range of applications, mainly in construction installation, mechanical parts connection, vehicles and ships, bridges, tunnels, railways, etc. Main shapes: semi-circular, square right angle, triangle, oblique triangle, etc.
essential information
1. The material properties density, bending strength, impact toughness, compressive strength, elastic modulus, tensile strength, temperature resistance, and color are determined according to the usage environment.
2. Commonly used materials include carbon steel Q235A Q345B alloy steel stainless steel, etc. Among them, stainless steel materials include 201 304, 321, 304L, 316, 316L, etc.
3. National standard for U-bolts: JB/ZQ4321-2006
4. Material
U-bolts are divided into carbon steel Q235, Q345 alloy steel, stainless steel 201, 304, 316, etc. by material, which is the difference between carbon steel and stainless steel.
The main characteristics of U-bolts are:
1. Simple structure, easy to manufacture and install.
2. It has good bending strength and tensile resistance.
The use of U-bolts is quite extensive:
1. Pipeline fixation: In pipeline installation, it is used to fix the pipeline and prevent its movement or vibration.
2. Power industry: used to fix wires or cables on utility poles.
3. Automotive field: For example, certain components that fix the chassis of a car.
4. Construction: Play a role in building scaffolding, fixing protective railings, etc.
5. Agricultural machinery: Components used to connect and fix agricultural machinery.
For example, in industrial pipeline systems, U-bolts can effectively secure pipelines to supports, reducing vibration and displacement during operation. In agricultural irrigation systems, U-bolts can firmly fix water pipelines to brackets, ensuring smooth irrigation.
U-bolts have a variety of materials, including carbon steel, stainless steel, etc. Different materials of U-bolts have different performance characteristics to adapt to various usage environments and requirements.
